All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines

All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines

  • All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines
  • All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines
  • All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines
  • All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines
  • All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines
  • All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines
  • All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines
All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines
Product Details:
Contact Now
Detailed Product Description
原产地: Hubei, China 品牌: PinYang
保修期: 1年 类型: Rice Mill Machine
用途: Clean 核心卖点: 多功能
视频出厂验货: 不可用 机械测试报告: 不可用
核心组件: 电机 产量 (kg/h): 9000 - 10000
筛面尺寸 (mm): Mm 功率 (kW): 1.5
尺寸(长×宽×高): 1514*1790*1809 重量: 560
Product Name: Suction Type Gravity De-stoner Function: High-yield Grain Processing Machine To Remove The Heavy Impurities
Usage: Separating Stones, Mud Clumps, And Other Heavy Impurities From Grain Keywords: Efficient, Durable, And Easy To Clean And Maintain

Product Description
All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines 0
Suction Type Gravity De-stoner
Suction type specific gravity stone remover is mainly used in grain processing enterprises to separate heavy impurities such as stones and mud blocks from wheat, rice and white rice.The machine has the characteristics of no dust outside, strong and durable, easy to disassemble,maintain and clean.
Specification
Model
Output
(T/H)
Power
(KW)
Air volunme
(m³/H)
Net Weight
(KG)
Dimension
(L*W*H/mm)
TQSX100
5-6
0.75
3800-4100
380
1514*1124*1809
TQSX125
7-8
1.1
6000-7500
480
1514*1375*1809
TQSX168
9—10
1.5
8000—10000
560
1514*1790*1809
1. With shutter sieve, it is more suitable for the raw grains that with more stones,higher stone-removing efficiency; 2. The inclination of shutter sieve varies from 10-14 degree depending on the different feedstock to attain the best processing effect. 3. With external fan, full sealed machine, and no dust outside machine, thereby gaining the end of evironmental protection. 4.Adopt reciprocating machanism with rubber bearing, less vibrating, low noise. 5.Adopt self-aligning bearing with looseness prevention device so as to make the mechanical property steadier.

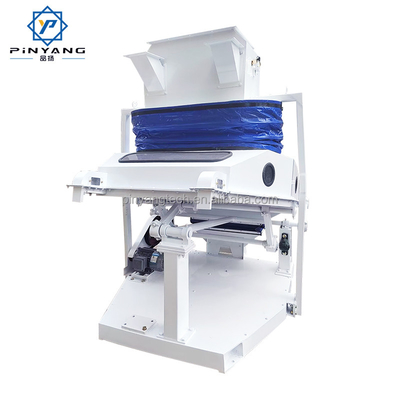

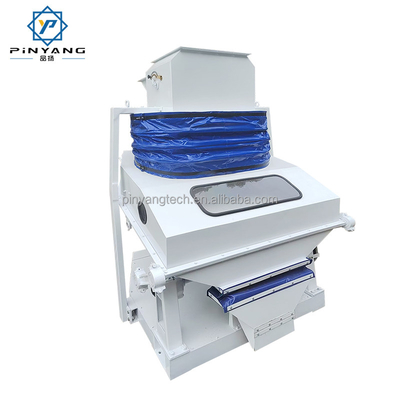

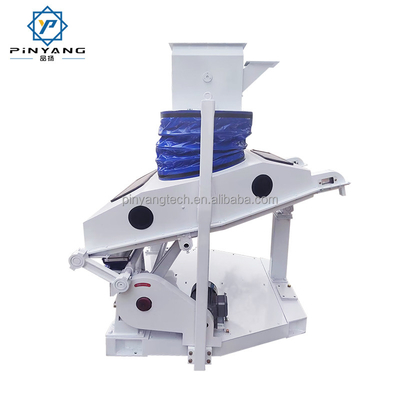

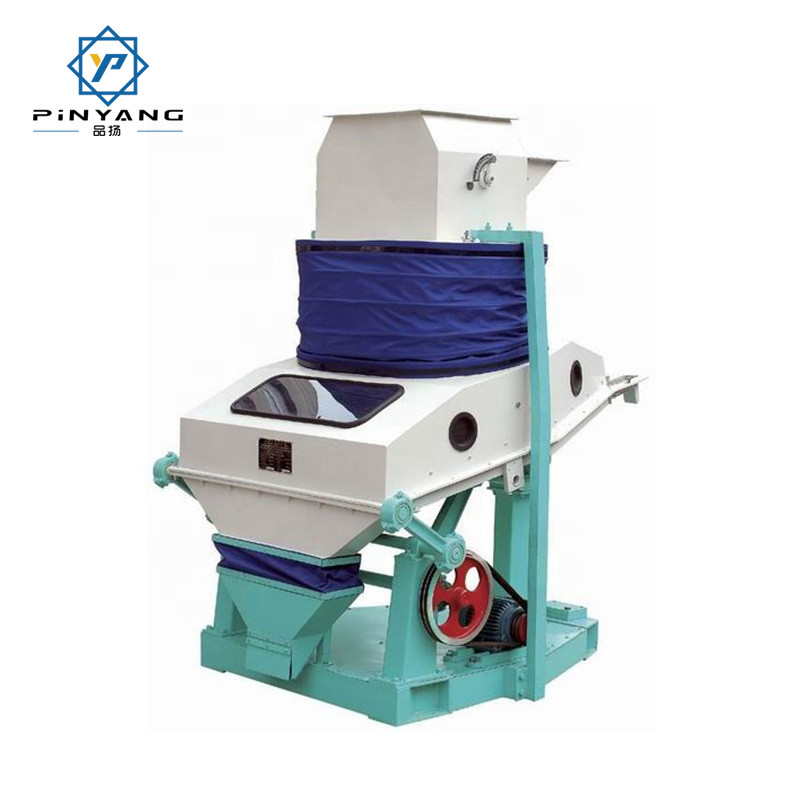

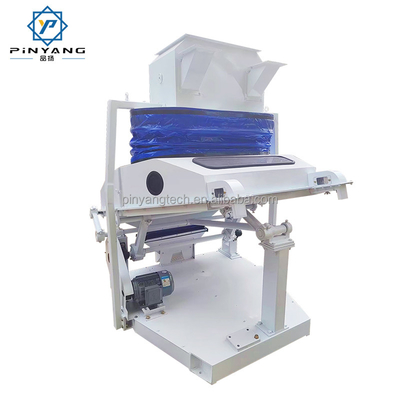

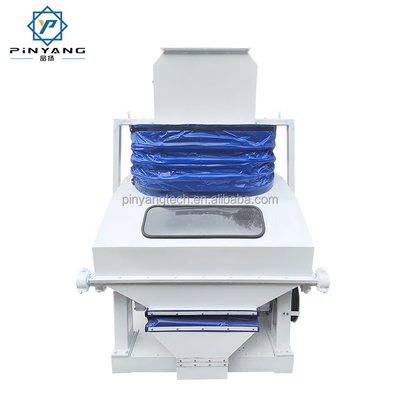

Product Photo
All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines 2
All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines 4
All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines 6
Product Application
All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines 8
All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines 10
Spare Parts
All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines 12
All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines 14
About us
All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines 16
All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines 18
All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines 20
Packing and Delivery
All-Type Grain Seeds Stone Removal TQSX168 Multifunctional Suction Type Gravity Destoner Machine Top Seed Destoner Machines 22
FAQ
1:Are you trading company or manufacturer ? A: We are the manufacture of rice mill machine , localed in HuBei China. 2:How long is your delivery time? A: For Single machine usually the lead time as 2-3weeks , for complete set rice millimg line , according the capacity and actually status , the lead time will at 30-180days . 3:Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample only charge the cost , buyer bear the freight charge. 4:What is your terms of payment ? A: T/T , L/C , Western Union  5:About Product Electricity Voltage and Frequency ? A:we can customized as your requirement. 6:About Shipping Service? A:We have good relationship with many freight forwarders, We can provide competitive LCL and FCL shipping service.Also can ship to your point Chinese freight Agent. 7:What machine you can offer ? A:We can all offer all kinds of rice mill machine and spare parts , we also can offer the complete set rice milling line , from plant design , machine choose , machine installation , operator training , test running and so on. Capacity from 15tons per day to 500tons per day.
