Name: Grain Vibrating Cleaning Sieve Machine Paddy Vibration Sifter Wheat Vibratory Cleaner for Rice Mill Plant
Brand: Hubei Pinyang Technology Co., Ltd.
Availability: InStock

Home Products Rice cleaner

Grain Vibrating Cleaning Sieve Machine Paddy Vibration Sifter Wheat Vibratory Cleaner for Rice Mill Plant

Product Details:

Place of Origin:	Hubei, China

Contact Now

Detailed Product Description

Features:	High Productivity	Application:	Grain Cleaning
Features:	High Production Efficiency	Production Capacity:	8-13t/h
Warranty:	1 Year	Dimension(lwh):	310017501700
Power(w):	0.4995*2	Voltage:	380V 50Hz
Weight (kg):	800	Video Outgoing-inspection:	Provided
Machinery Test Report:	Not Available	Core Components:	Motor
Product Name:	Grain Cleaning Machine	Function:	Grain Products Processing
Suitable For:	Wheat Rice Corn Oil

Product Introduction

TQLZ Series Vibration Cleaning Machine was designed to clean large / middle and small impurities in rice milling plant, oil plant, feedstuff and etc.

The materials can be graded to different particle size by the series machine by adopt different specifications sieve with different specifications.

The series machine using vibration motor, damping rubber springs and other optimization parts. It has the feature such as large capacity, low power, working stability and etc.

Product Feature

1. Compact size, well sealed, less dust leakage.
2. Optional vertical aspirator has high efficiency of removing light impurities and dust.
3. High capacity, low noise and low power consumption.
4. Driven by a pair of vibrating motors, the vibrating force, vibrating direction and inclination of sieve cover are adjustable.
5. Dependable quality, good appearance, convenient installation and operation.
6. Sieve pores are difficult to be blocked thanks to automatic cleaning device.

Product Specifications

型号Model	TQLZ100	TQLZ125	TQLZ150
产量Output（T/H）	6-12	8-13	10-15
功率Power（KW）	0.37*2	0.37*2	0.75*2
风量Air volunme（M³/H)	4000	5000	6000
净重Net Weight（KG）	700	800	1100
外形尺寸Dimension(LWH/mm)	310015001700	310017501700	310022501700

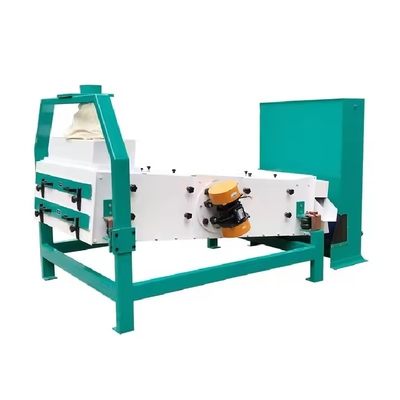

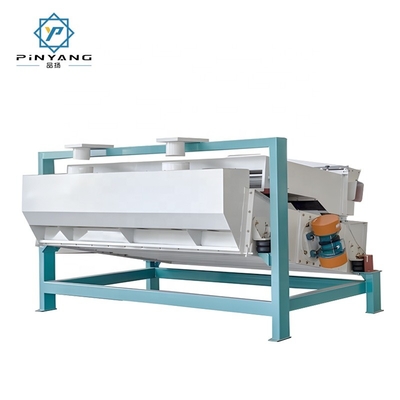

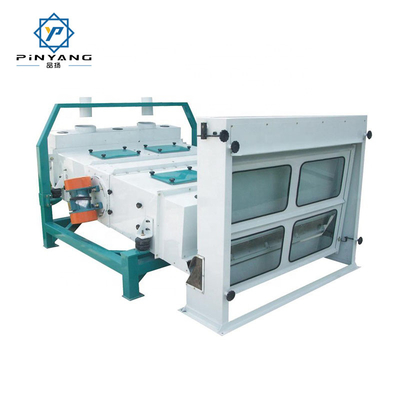

Product Photo

Packing and Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Related Products

Company Profile

FAQ

Q1:What's your advantage? Why we choose you?
Above 15 years' experience of designing, manufacturing and exporting of the rice processing machinery. We have the most professional techniques, team and more competitive price.

Q2:Can we mix different models and accessories together?
You may mix different products or models in a single container but we would need to advise you on optimum loading and final capacity of your shipment.

Q3:How do I visit you and the factory?
Welcomed you visit us and our factory at any time. We can pick you up at airport or train station and bring you to our factory .
Let us know your schedule in details in previous ,so we can arrange everything for you. Normally you need 2-3 days for an adequate visit to our factory.

Q4: How can I become a dealer in my area?
If you are qualified, you may apply for a dealership. We choose reliable partners for a long term business cooperation.

Q5:Can I get an exclusive right for your machines in some territories?
It depends on which country you are in. We have exclusive agents at several countries at this time. Most countries you can sell freely.

Q6:How long is your delivery time?
For Single machine usually the lead time as 2-3weeks , for spare parts usually 5-10days , but if the parts as customized ,the lead time will according the actually status to confirm, for complete set rice millimg line , according the capacity and actually status , the lead time will at 30-180days .

Q7: How to order the spare parts?
Some machines will come with some free spare parts. We also advise you purchase some wearing parts with the machines together to stock for urgent replacement, we can send you recommended parts list. We can offer all kinds of rice mill spare parts , not only for our own brand , also include the world famous brand rice mill machine and its spare parts.

Q8:I knew nothing about these machines, what kind of machine I should choose?
We have product list can for your reference or We will according your idea about the capacity or budget, you will also be asked some easy questions, then we can recommend you good models according to the information.
